Tech Drawings of the DC-3 #2




Provided here, are even more (part 2) tech drawings of the DC-3/C-47 and it's variants by huge popular demand. See also "Tech drawings of the DC-3 #1" HERE Please give some time for all the images to load.

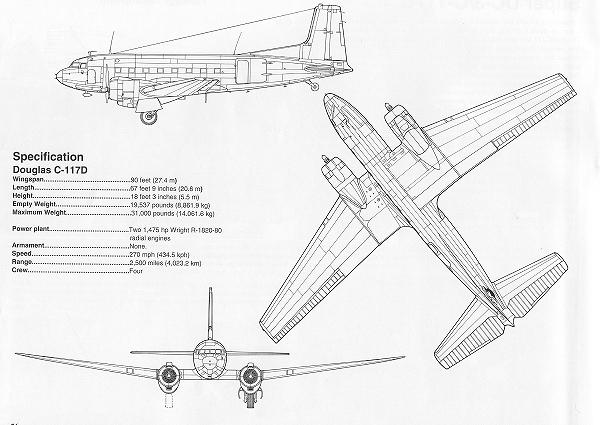

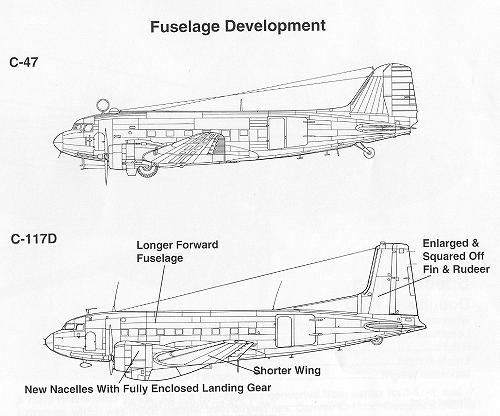

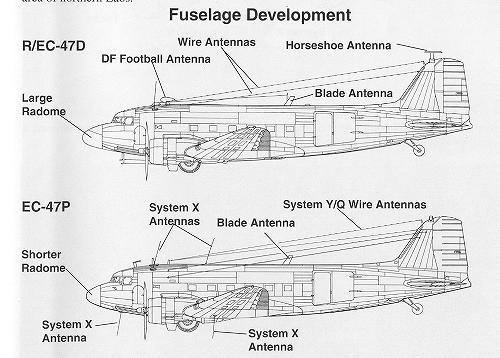

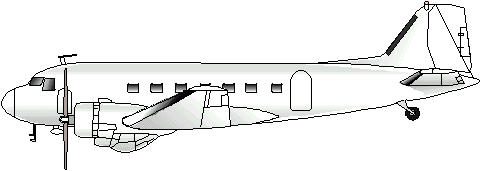

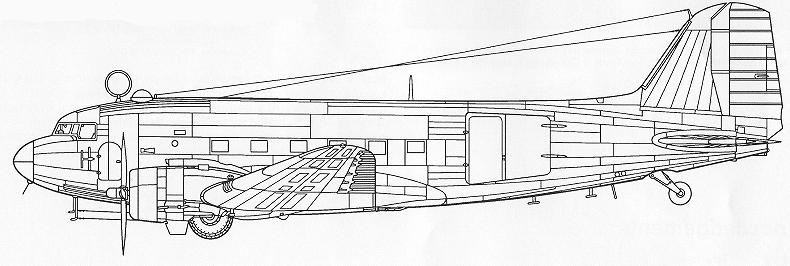

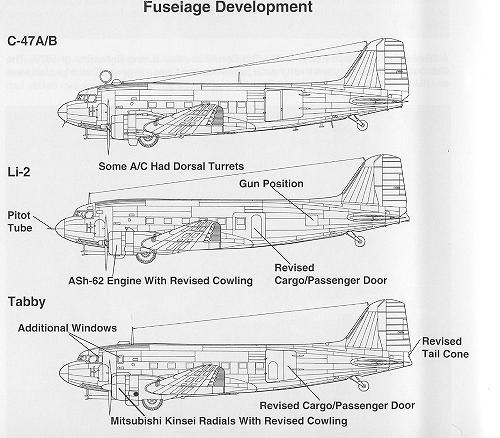

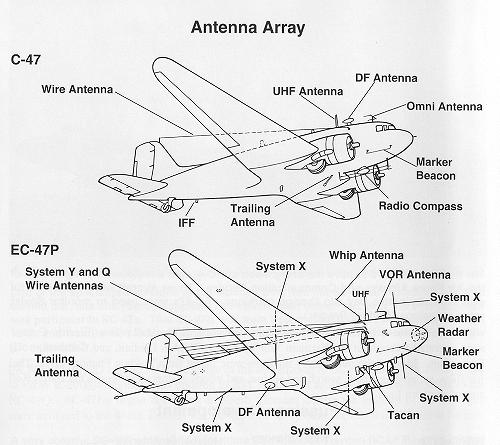

The first 5 Images are courtesy of TecPilot's Aircraft Library (Under Licence) 2000-06. This is a wonderful resource, especially for those building or designing aircraft like the DC-3. The latter 12 images are courtesy of Mr Sewell & Mr L. Davies of Squadron/Signals Publications texas. They kindly provided and gave permission for the use of the scans.
